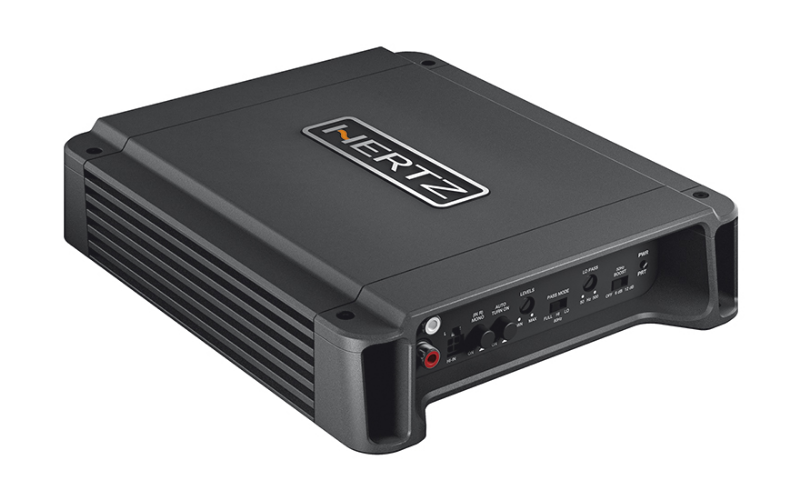

意大利赫兹HERTZ—HCP功放系列HCP 2 2路AB类功放
产品参数
| 功放类型 |
AB类
|
| 声道数量 |
4
|
| 额定输出功率 |
4x65W
|
| 谐波失真 |
0.01%（1khz@4欧）
|
| 信噪比 |
103db
|
| 阻尼系数 |
120
|
| 尺寸W×D×H |
315×190×50（mm)
|
| Channels | 2 - 1 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 1 x 20 A |
| Idling current (power ON/OFF) | 0.4 A / 0.04 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): | 12 A |
| Remote In: | 7 ÷ 15 VDC - 1 mA |
| ART: | Automatic Remote Turn-On/Off with Speaker-In |
| AMPLIFIER STAGE | |
| Distorsion - THD (100 Hz @ 4 Ω) | 0.01 % |
| Bandwidth: | 10 ÷ 65k Hz |
| S/N Ratio (A weighted @ 1 V): | 103 dB |
| Damping factor (100 Hz @ 4 Ω): | 200 |
| Pre-In sensitivity: | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN) | |
| @ 2 Ch: | 2 Ω |
| @ 1 Ch: | 4 Ω |
| Max size (mm / in.): | 215 x 190 x 50 / 8.46 x 7.48 x 1.97 |
| Weight (kg / lb.): | 1.80 / 3.96 |
| Adjustable Crossovers | yes |
Output Power
| Output Power (RMS) @ 14.4 VDC, THD 1%: | |
| 2 Ch: | 55 W x 2 (4Ω) |
| 2 Ch: | 85 W x 2 (2Ω) |
| 1 Ch: | 170 W x 1 (4Ω) |
| Output Power (RMS) @ 14.4 VDC, THD 10%: | |
| 2 Ch: | 65 W x 2 (4Ω) |
| 2 Ch: | 100 W x 2 (2Ω) |
| 1 Ch: | 200 W x 1 (4Ω) |
| CEA 2006-A Ratings: | |
| RMS Power (4Ω, ≤ 1 % THD + N, 14.4 V): | 50 W x 2 Ch |
| S/N Ratio (ref. 1 W output) | 82 dBA |
| Total Power RMS | 400 W |
INPUTS / FILTERS
| INPUTS: | PRE IN / SPEAKER IN |
| Pre out FULL range (FRONT) | Yes |
| Filters FULL: | Yes |
| Hi-Pass: | 80 Hz @ 12 dB/Oct |
| Lo-Pass: | 50 ÷ 500 Hz @ 12 dB/Oct |
| MONO (on/off): | Yes |
| BOOST 50 Hz (select): | (0 / 6 / 12) dB |

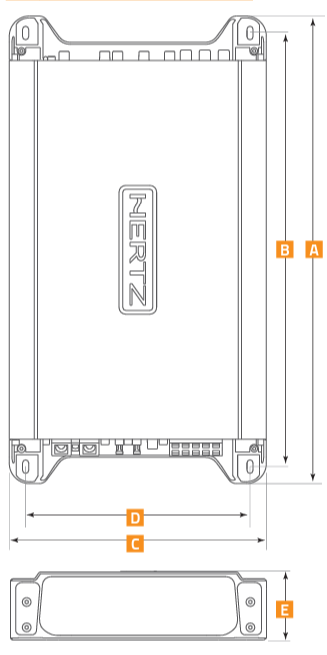

Physical Specs
| mm | in |
| A | 215 | 8.46 |
| B | 200 | 7.87 |
| C | 190 | 7.48 |
| D | 166 | 6.53 |
| E | 50 | 1.97 |
